How it works:
Choose the areas you want to have lit; we suggest you then sketch a rough plan view of each area involved.
Choose the fittings which will suit your requirements, and list them, with the quantity required where relevant. Be careful to keep a note of the voltage of the fittings chosen.
Measure the distance involved for the Plug & Go models chosen and determine, from the cable set options available, which cable set or sets will be needed. Remember, up to 80 metres of cable can be used from 1 LED driver, but the wattage loading must not exceed the recommended maximum.
Plan where the mains supply will originate from. With the Plug & Go system you have a choice of placing the LED driver / drivers in an IP rated wall box on an exterior wall. However, depending on how large an area is involved, sometimes more than one mains feed may be needed in different locations. Consultation with an electrician is advisable on this matter.
Plug and Go Cables and Drivers:
GZ/Driver (Transformer) - IP66 11W (min load 3Watt , max load 11Watt)28W (min load 9Watt , max load 28Watt) are not currently available, however will be in due course, but at this point not know a date.
2 alternative options are available an:
8 Watt Driver – Suitable for installations between 2 Watts and 8 Watts or a
16 Watt Driver – Suitable for installations between 3.5 Watts and 16.8 Watts
Drivers are supplied with 30cm of cable.
Each fitting is supplied with 1.5m of cable.
Important : all fittings should be plugged in prior to switching power on.
GZ/Cable Set IP68:

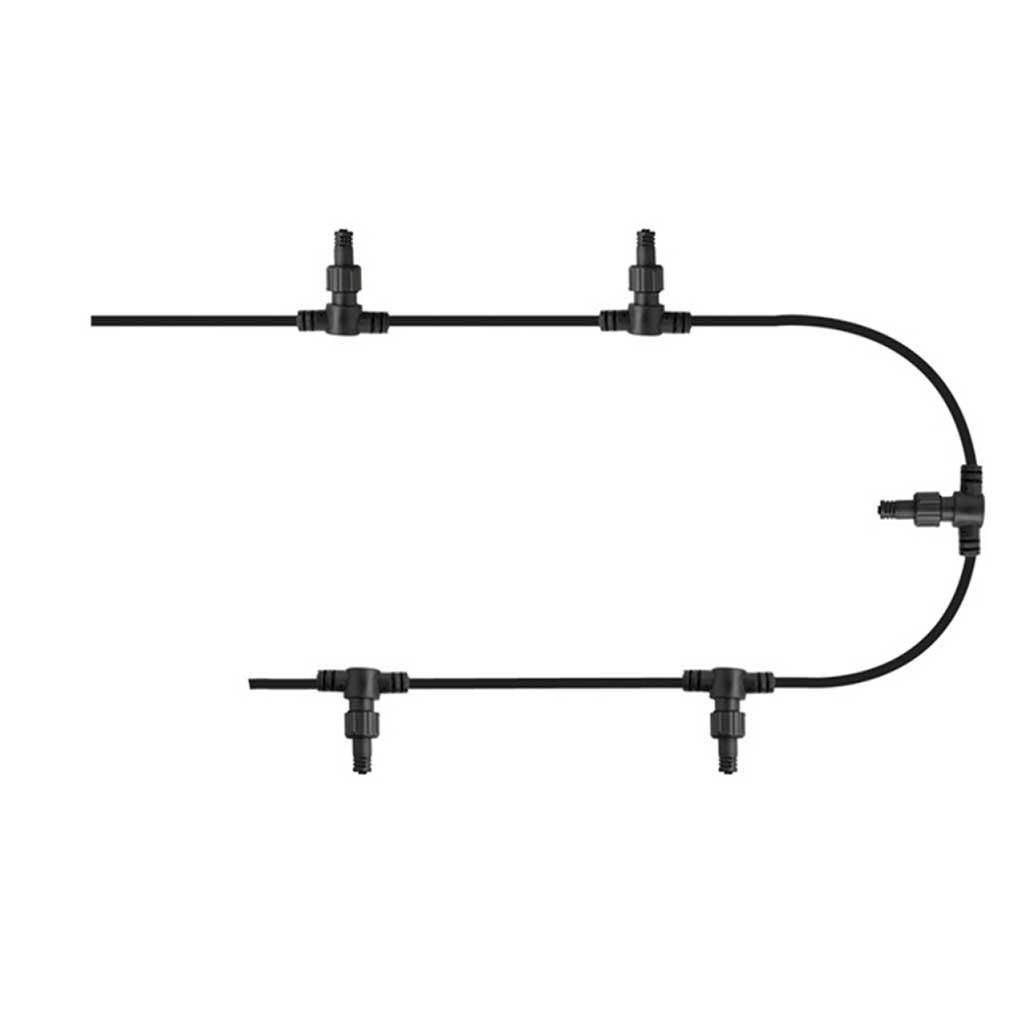

GZ/Cable set-6M cable set for plug & go fittings 6 metres long with 5 plugs spaced 1 metre apart for up to 5 fittings.

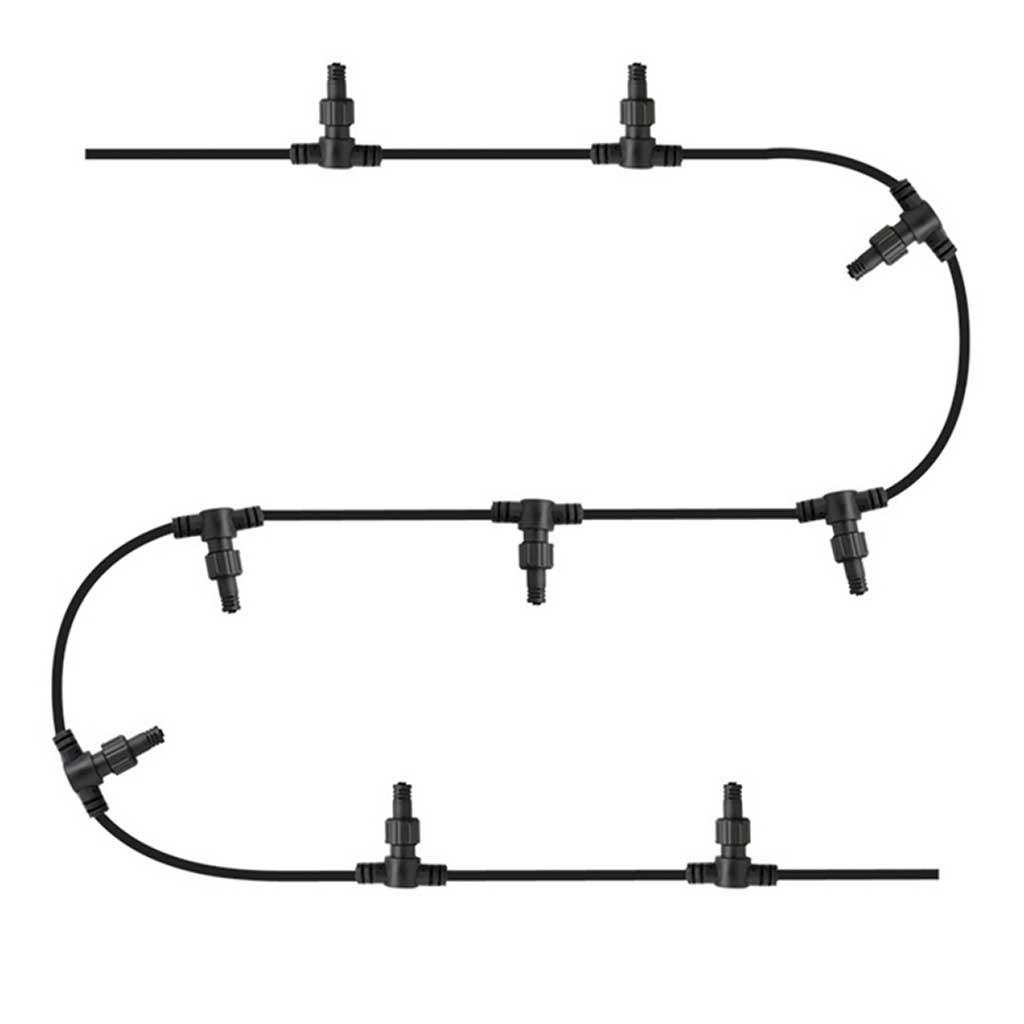

cable set for plug & go fittings 10 metres long with 9 plugs spaced 1 metre apart for up to 9 fittings.

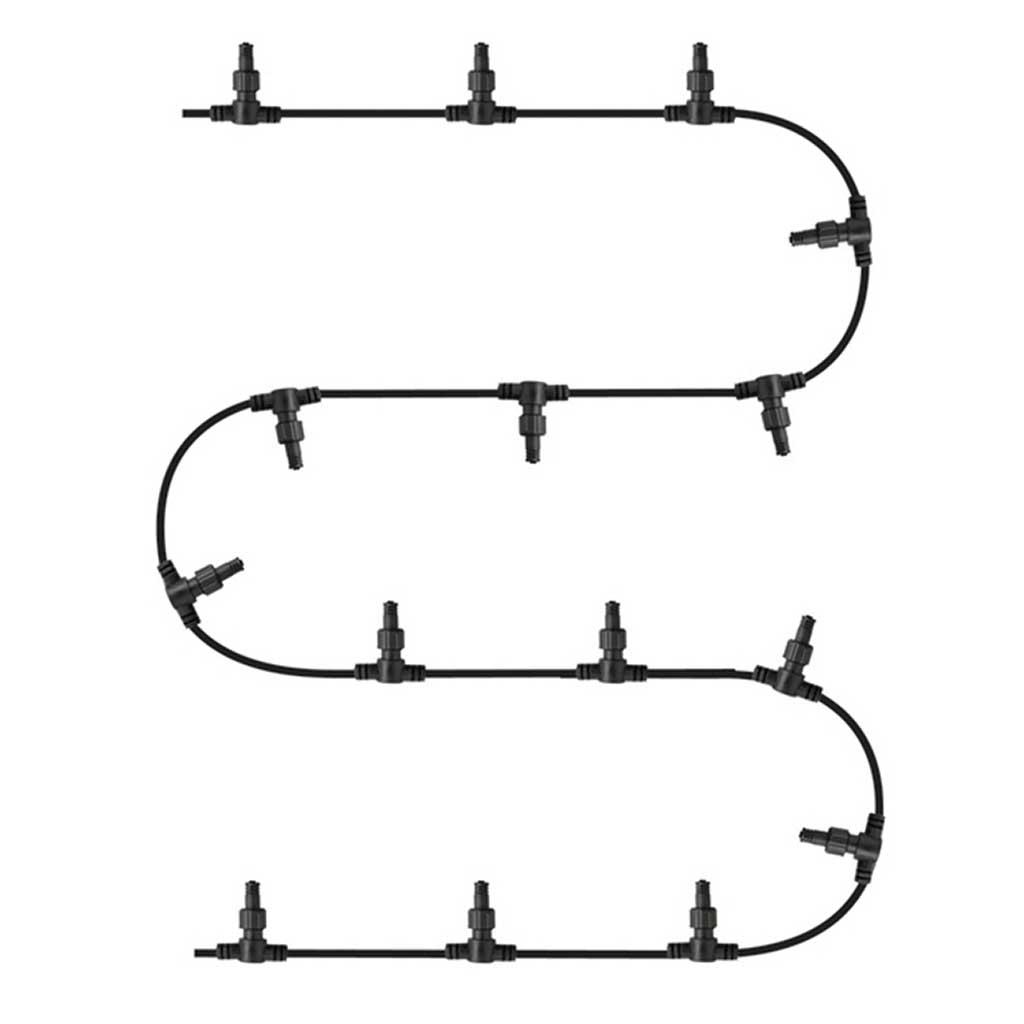

GZ/Cable set-16M cable set for plug & go fittings 16 metres long with 15 plugs spaced 1 metre apart for up to 15 fittings.
GZ/Cable 3 Way 1.5 metre extension lead with 3 plug sockets on the end.
GZ/Cable Set - 2metre 2 metre extension lead with single plug extension cable.
GZ/Cable Set - 20metre 20 metre extension lead single plug extension cable.
